Mega-Pack Packaged Storage Water Heaters
Provides peak load output at off-peak boiler capacity. Configurable in a wide range of requirements for temperature rise and GPH recovery. Engineered for stadiums, universities, and large commercial buildings.
APPLICATIONS
Hospitals, correctional facilities, office buildings,
schools, military bases, restaurants
Features
- Completely assembled storage water heaters with tube bundle or electric heating elements, automatic controls, valves, piping, circulating system, wiring, insulation and skid mounted
- Provides for peak load outputs and utilizes off-peak boiler capacity

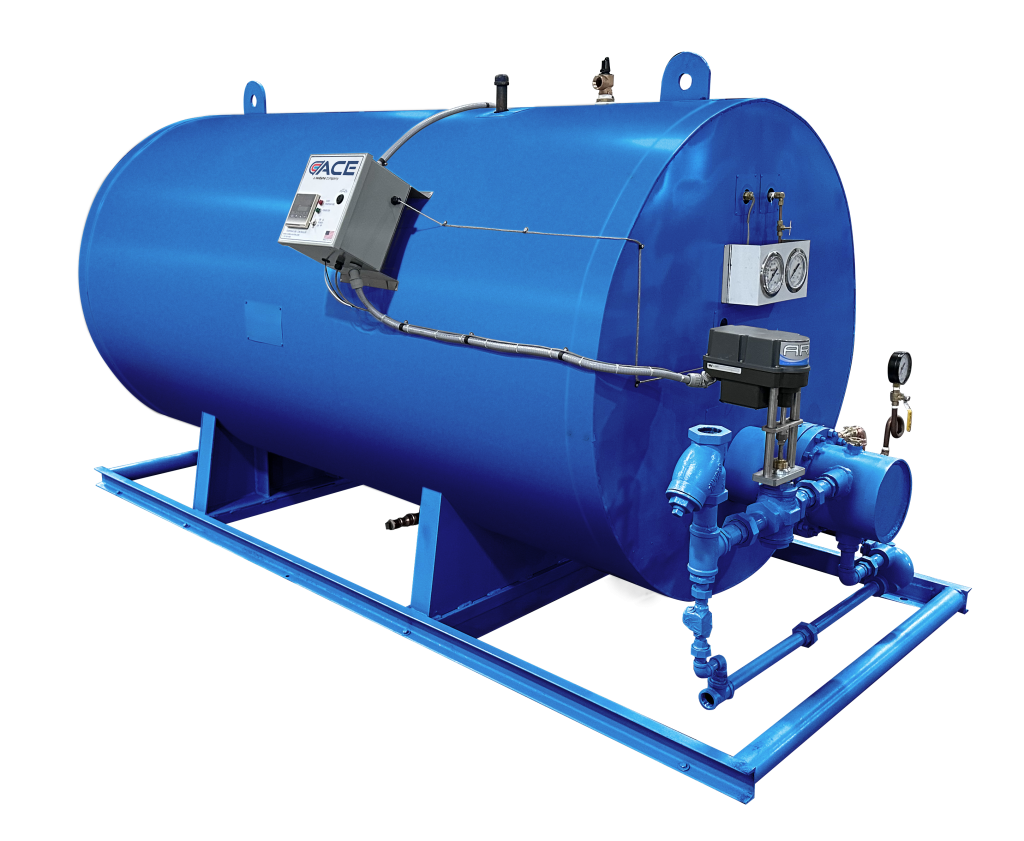

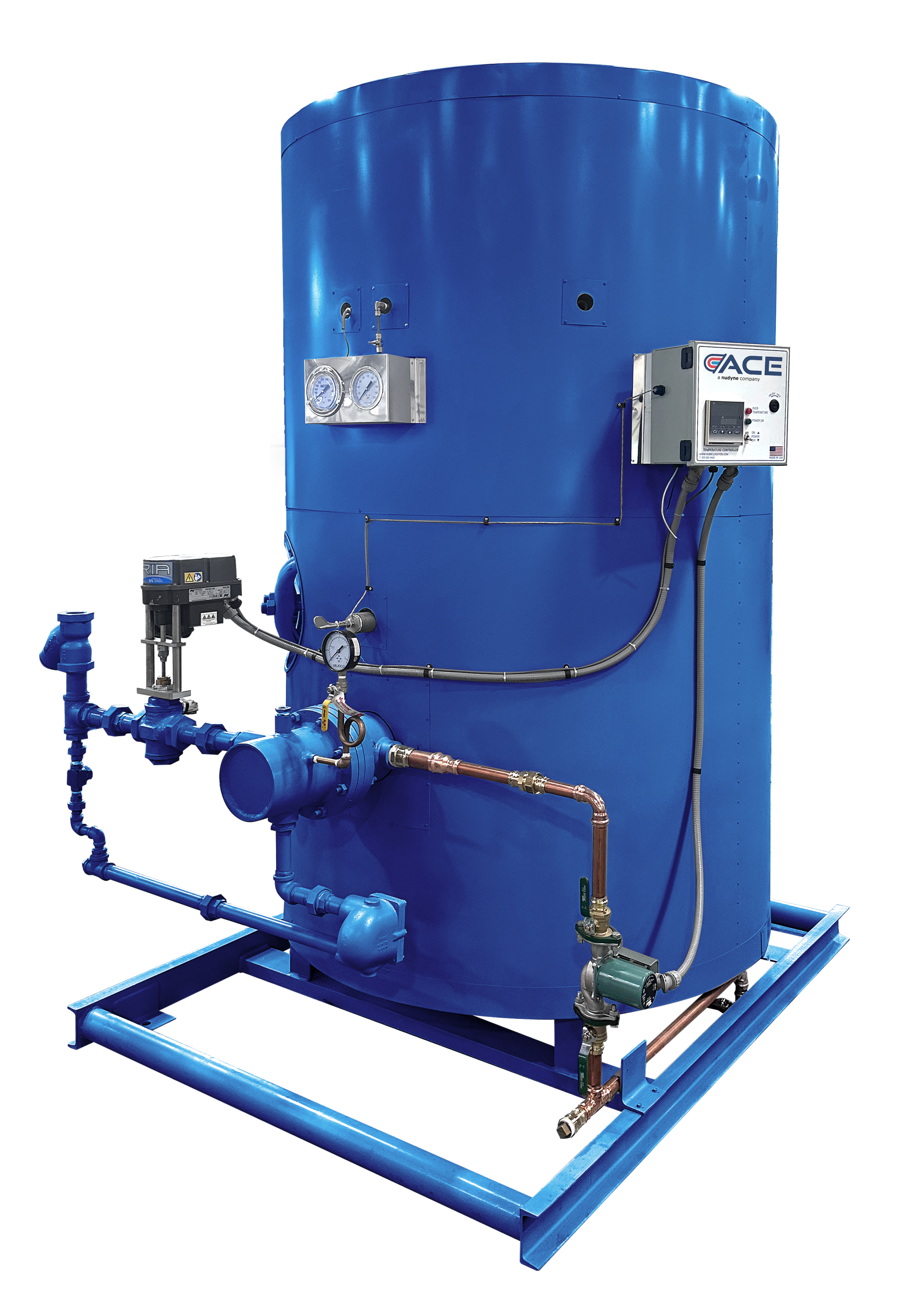

- Small, medium, or large storage volumes available in vertical and horizontal models
- Ace Temp Control System
- Tube bundle readily accessible without moving heater, shell or foundation
- Quality components for high performance
- ASME Section VIII Div I vessel
- Small, medium or large storage volumes
- Quality components for high performance
- Completely assembled storage water heaters with tube bundle, circulating system, wiring, insulation and skid mounted
- Cement-lined tank standard
Options
- Pre-Krete, Epoxy, or Glass linings
- Insulating and jacketing packages (mirror finish stainless steel jacket)
- Unpackaged storage water heater (all controls, no insulation or jacket)
- Stainless tank construction
- Double-wall copper or cupro-nickel (90/10) tubing
- Single-wall cupro-nickel (90/10), 304 or 316l stainless steel tubing
- Steam-to-water: electric, pneumatic or pilot-operated control valve
- Water-to-water: self-operating, electric or pneumatic control valve
Performance
- Outlet water temperature to:
- 160°F Max – Glass lining
- 180°F Max – Cement lining
- 203°F Max – Epoxy
- 350°F Max – Pre-Krete lining
- Standard maximum allowable storage section working pressure 150 psig (125 psig available)
- Tube bundle maximum allowable working pressure 150 psig standard, optional to 400 psig
- Outlet water temperature to:
